Re-analysis

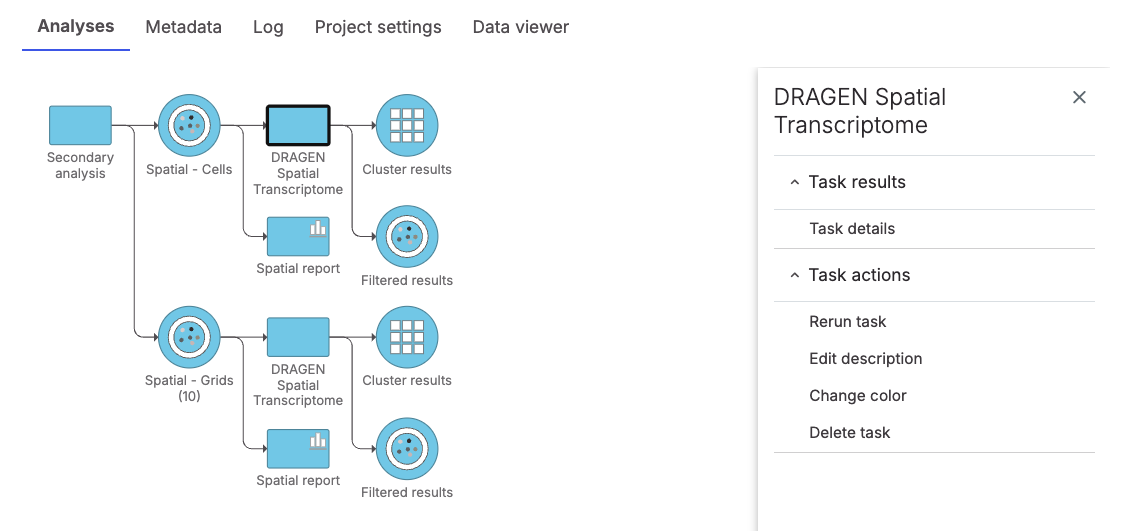

In order to re-analyze data that was generated upstream in the DRAGEN StrataMap software, click the rectangle indicating the task, then click "Rerun task" from the task menu.

A new page will open with the parameters that can be adjusted from the defaults used for the original analysis. Make changes as needed and click "Finish" to submit the new task.

The new task will be a different color and be placed in parallel to the original.

New Spatial plot with Re-Analysis Results

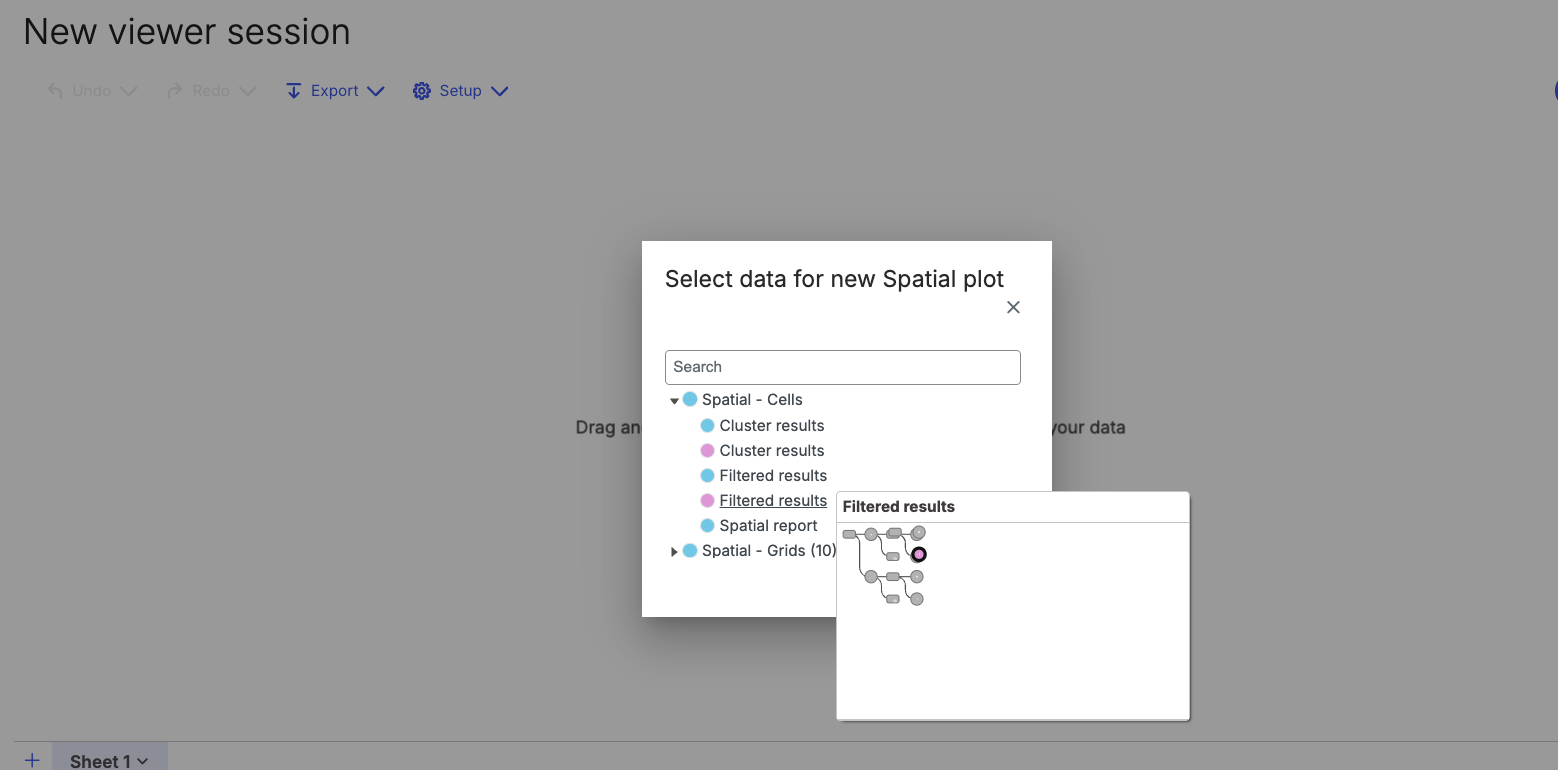

Within the Data Viewer tab, select "Start a new session". Select "Setup", "New plot", then "Spatial plot". In the options for the data select the new data, it will likely be a different color from the original default blue.

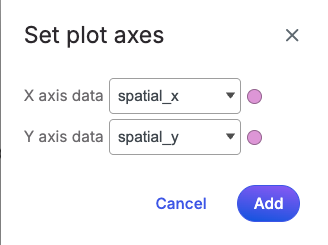

It should pre-select spatial_x and spatial_y for the x and y axes. Click "Add" to add the data. The spatial image should load for the background automatically.
