Domain

Overview

The Domain section of the Admin Console displays domain-level settings and allows administrators to manage users, security policies, access controls, and integrations. To view Domain settings, navigate to Admin from BioInsight Platform and select Domain from the left navigation menu.

The Domain settings page contains the following sections, accessible from the left navigation submenu:

Section
Description

Usage reports

Generate reports on user sessions, login activity, and workgroup events.

Sessions

Configure idle session timeout, JWT expiration, and API key settings.

User management

Manage domain users, allowed emails, and service accounts.

Access

Restrict domain access by IP address or CIDR range.

Collaboration

Configure collaboration domain namespaces.

Roles

Create and manage custom roles with unique permission settings.

Authentication

Configure the authentication type (Default or SAML SSO).

DNS domain

Verify DNS domain ownership for SSO configuration.

About

View the domain name, namespace, and ID.

About

The About section displays basic information about the domain: the domain Name, Namespace, and ID. Click Change name to update the domain display name.

About section showing domain name, namespace, and ID

Usage Reports

The Usage reports section allows you to generate reports on domain activity.

Usage reports section with report type selection, date range, and recipients

Select a report type:

Report Type
Description

General Usage Report

User sessions, last login details, registration date, and usernames.

Login Report

Account activity including client IP addresses, applications accessed, event types, and user emails.

Workgroup Report

Workgroup activities, including event data for actions performed by each user.

Select a Date range and enter the email addresses of the Recipients who should receive the report. Click Generate reports to submit.

Usage reports can only be generated for the last 90 days. For information older than 90 days, contact Illumina Support.

Sessions

The Sessions section allows you to configure session timeout and API key settings.

Sessions section showing idle session timeout, JWT expiration, and API key settings

Idle Session and JSON Web Token (JWT)

Setting
Description

Session timeout

The number of minutes a session can be idle before it times out. Accepted values are 5–60 minutes. Set to -1 to disable.

JSON Web Token (JWT) expiration

The duration before the JWT token expires. Accepted values are 120–10,080 minutes (2 hours to 7 days).

API Keys

Setting
Description

API keys expiration

The number of days before an API key expires. Set to -1 to disable expiration.

Max active API keys

The maximum number of active API keys a user can have at the same time.

Click Edit to modify these settings.

User Management

The User management section contains three tabs: Users, Allowed emails, and Service accounts.

Users

The Users tab displays a list of all domain users with their name, email, domain role, and action buttons.

User management Users tab showing domain owner, search bar, user table with name, email, domain role, and actions

The Domain owner is displayed at the top of the page. Use the Search username box and All users dropdown to filter by name or role.

Each user row shows:

Column
Description

Name

The user's display name. Click to view user details.

Email

The user's email address.

Domain role

Admin or User.

Actions

View user details or delete the user.

Change Domain Owner

To change the domain owner, click Change owner at the top of the Users tab.

Change domain owner modal with Owner email field

The domain owner is the primary administrator and main point of contact for the domain. They receive monthly emails about BIC balances and are automatically assigned to any new orders placed for the domain. Enter the new owner's email address and click Change owner.

Assigning a domain owner automatically makes them a domain administrator. The previous domain owner will remain a domain administrator.

Invite Users

To invite users to the domain, click + Invite at the top of the Users tab. Enter one or more email addresses to send domain invitations.

Allowed Emails

The Allowed emails tab controls which email addresses can join the domain.

Allowed emails tab showing allowed email addresses and allowed email suffixes
Setting
Description

Allowed email addresses

Users can join the domain if their email exactly matches one of these addresses.

Allowed email suffixes

Users can join the domain if their email contains one of these suffixes (do not include the @ symbol).

It is not recommended to allow common email suffixes such as gmail.com.

Click Edit to add or remove allowed emails and suffixes.

Service Accounts

The Service accounts tab displays special accounts used by applications or services to interact with the domain without requiring a user to log in.

Service accounts tab showing PGUID, account status, activation date, expiration date, application, and actions

Toggle Enable service accounts to allow or block service accounts. When disabled, existing service accounts are blocked and new ones cannot be created.

The service accounts table shows each account's PGUID, status, activation date, expiration date, associated application, and action buttons. Click the manage icon in the Actions column to view the account's state and API keys.

Access

The Access section allows you to restrict domain access by IP address or CIDR range.

Access section showing method of access management and IP address/CIDR range fields

Select a method of access management:

  • Create an allow-list for IP addresses/CIDR to allow access — Only the specified addresses will be allowed.

  • Create a block-list of IP addresses/CIDR to block access — The specified addresses will be blocked.

Enter IP addresses or CIDR ranges separated by commas (e.g., 192.10.10.1, 192.255.10.*, 192.10.10.0/32). Click Edit to modify these settings.

Collaboration

The Collaboration section allows you to configure the collaboration domain namespaces for inviting users via Collaborative Enterprise.

Collaboration section showing allowed namespaces

Enter a domain namespace and click Edit to add it to the allowed list. Users from these namespaces can be invited to workgroups via Collaborative Enterprise.

Roles

The Roles section allows domain administrators to create and manage custom roles with unique permission settings that provide access control within workgroups.

Be cautious when applying custom roles — incorrect setup may lead to restricted access and unexpected issues.

Use the Search box to filter by application name or role name. The table displays each role's name, associated application, description, type (System or Custom), last modified date, and available actions.

Click a role name to view its detailed permissions. To create a new role, click + Create role, select an application, enter a role name and optional description, and select at least one permission.

Authentication

The Authentication section allows you to configure the domain's authentication method.

Authentication section showing authentication type and multi-factor authentication settings

Authentication Type

Type
Description

Default

The Illumina Authentication System manages user credentials.

SAML

Users are redirected to your Identity Provider (IdP) to authenticate via SAML 2.0 (see Single Sign-On below).

Multi-Factor Authentication (MFA)

If your Authentication Type is configured to SAML, MFA settings are managed by your SAML provider.

Setting
Description

Require MFA

Enable or disable multi-factor authentication for the domain.

Users need to configure MFA within

The number of days users have to complete MFA setup before it becomes mandatory.

Lock user account after

The number of unsuccessful MFA attempts before the account is locked.

Click Edit to modify authentication settings.

Single Sign-On (SSO)

SSO requires an Illumina BioInsight Platform (formerly Connected Software) domain subscription. It is not available for BaseSpace Free Trial or BaseSpace Professional accounts, which do not include a domain.

To enable logging into the platform using your organization's identity provider (IdP), configure SAML in the Authentication section.

To configure SSO, follow these steps:

  1. Verify your organization's DNS domain in Illumina BioInsight Platform (formerly Connected Software).

  2. Create a SAML 2.0 application in your IdP.

  3. Configure ICS with your IdP metadata and attribute mappings.

  4. Switch your domain authentication to SAML and test.

Prerequisites

  • An active Illumina domain subscription

  • A domain administrator account for your Illumina domain

  • Access to your IdP to configure the SP application

  • Your IdP configurations:

    1. Metadata XML

    2. SAML Attributes for EmailId, firstName, LastName

Configure DNS Domain

Step 1: Create DNS Domain record

  1. Go to the Admin Console for your Illumina domain, and navigate to the Domain tab.

  2. Navigate to the DNS domain menu.

DNS domain section showing domain verification table and DNS email exclusion

  1. Enter your domain (e.g., company.com) and click Add.

  2. Copy the TXT record value for the new entry.

Step 2: Verify DNS Domain

To confirm domain ownership, add a TXT record to your Domain Name System (DNS) host using the TXT Record Value. DNS propagation can take up to 72 hours. Illumina BioInsight Platform (formerly Connected Software) automatically checks for the record during this time.

  1. To add your TXT record to AWS, see Creating records by using the Amazon Route 53 console.

  2. Wait up to 72 hours for TXT record verification.

  3. After the record is live, go to DNS domain in the Admin Console and select Verify.

  1. To add your TXT record to Google Cloud DNS, see Verifying your domain with a TXT record.

  2. Wait up to 72 hours for TXT record verification.

  3. After the record is live, go to DNS domain in the Admin Console and select Verify.

  1. To add your TXT record to GoDaddy, see Add a TXT record.

  2. Wait up to 72 hours for TXT record verification.

  3. After the record is live, go to DNS domain in the Admin Console and select Verify.

  1. Sign in to your domain host.

  2. Add a TXT record to your DNS settings and save the record.

  3. Wait up to 72 hours for TXT record verification.

  4. After the record is live, go to DNS domain in the Admin Console and select Verify.

Connect SSO

Step 1: Create SSO connection in IdP

The Illumina BioInsight Platform (formerly Connected Software) service provider (SP) application uses the following configuration:

  • Entity ID: https://login.illumina.com/saml-service/saml/metadata

  • ACS (Assertion Consumer Service) URL: https://login.illumina.com/saml-service/saml/SSO

  • Binding: HTTP-POST

  • NameID Format: urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress

  1. Sign in to your Okta account and open the Admin portal.

  2. Select Administration and then Create App Integration.

  3. Select SAML 2.0, then Next.

  4. Name your app "Illumina BioInsight Platform".

  5. Optional: Upload a logo.

  6. Paste the service provider configuration values from above:

    • ACS URL → Single Sign On URL

    • Entity ID → Audience URI (SP Entity ID)

  7. Configure the following settings:

    • Name ID format: EmailAddress

    • Application username: Email

    • Update application username on: Create and update

  8. Under Attribute Statements, enter the following Name → Value attributes. Make sure the Name format is set to "URI Reference."

    1. email → user.email

    2. first → user.firstName

    3. last → user.lastName

  9. Select Next.

  10. Select the This is an internal app that we have created checkbox.

  11. Select Finish.

  1. Sign in to Microsoft Entra (formerly Azure AD).

  2. Select Default Directory > Add > Enterprise Application.

  3. Choose Create your own application, name it "Illumina BioInsight Platform", and choose Non-gallery.

  4. After creating your app, go to Single Sign-On and select SAML.

  5. Select Edit on the Basic SAML configuration section.

  6. Edit Basic SAML configuration and paste values from above:

    • Entity ID → Identifier

    • ACS URL → Reply URL

  7. Save the configuration.

  8. From the SAML Signing Certificate section, download the Federation Metadata XML.

Step 2: Connect Illumina BioInsight Platform (formerly Connected Software) to your IdP

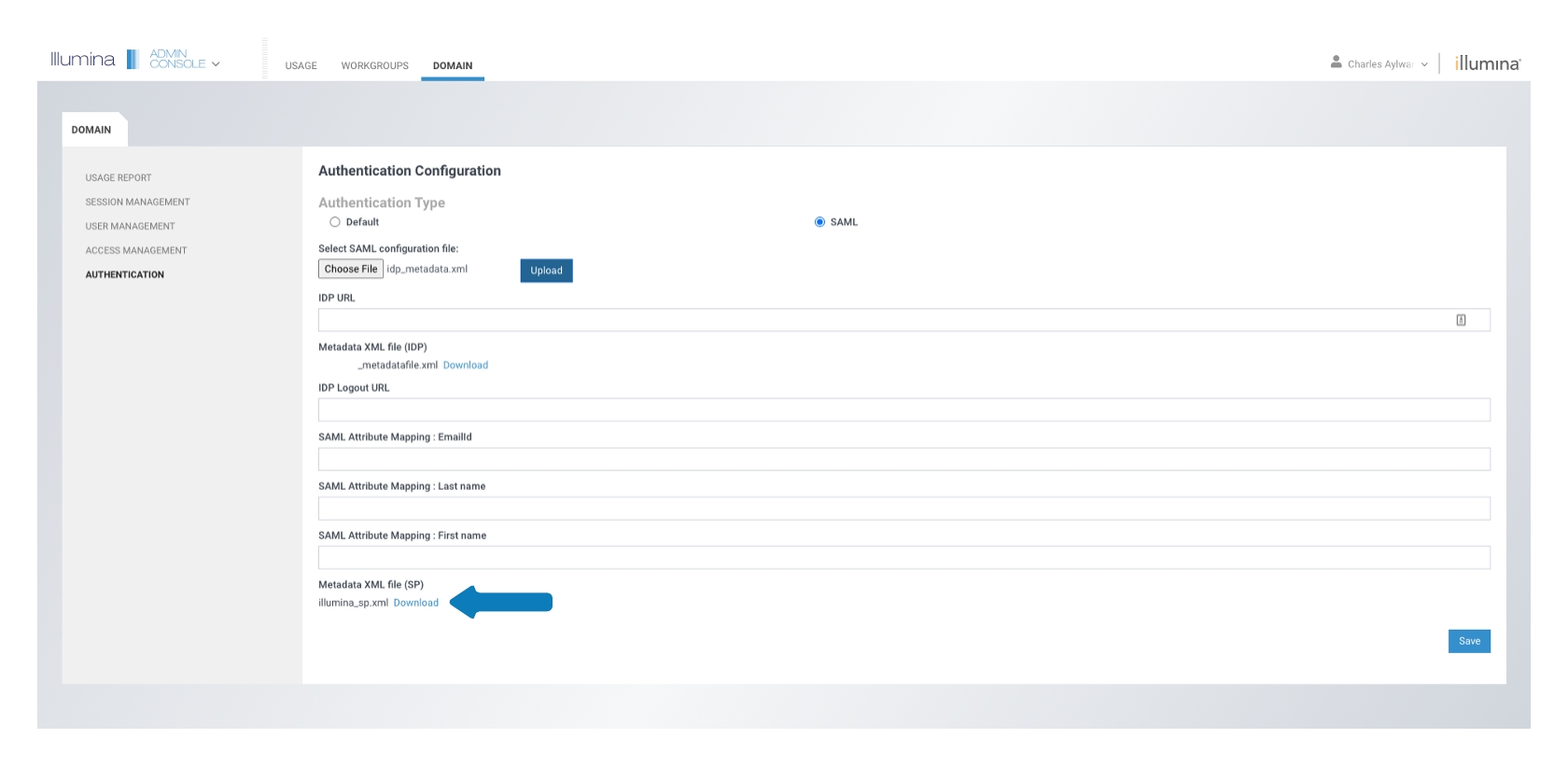

Authentication section with SAML enabled, showing IdP URL, SAML configuration file upload, and attribute mappings

Complete the integration by pasting your IdP values into Illumina BioInsight Platform:

  1. Go to the Admin Console for your Illumina domain, and navigate to the Domain tab.

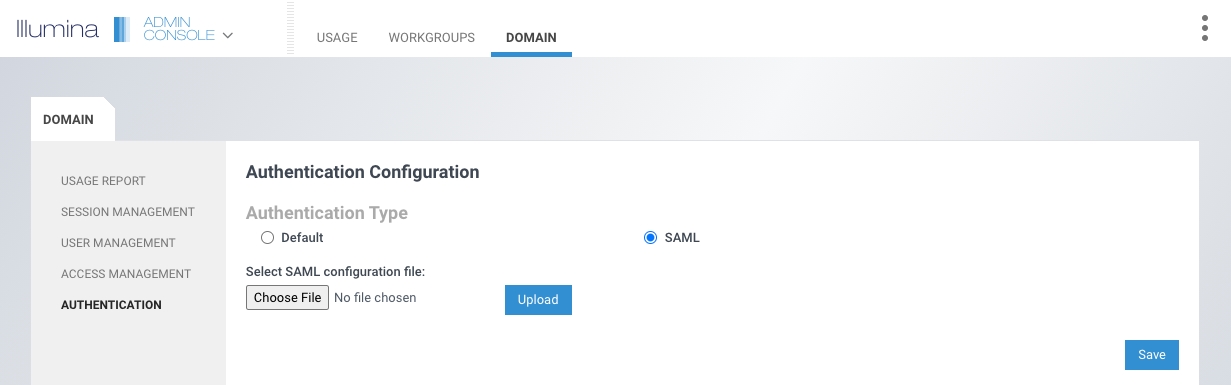

  2. Navigate to the Authentication menu and enable the SAML Authentication Type.

  1. In Okta, select your app and go to View SAML setup instructions.

  2. Copy the Identity Provider Single Sign-in URL.

  3. Copy and paste the IDP Metadata into a text editor. Save the file.

  4. Return to the Illumina BioInsight Platform Admin Console.

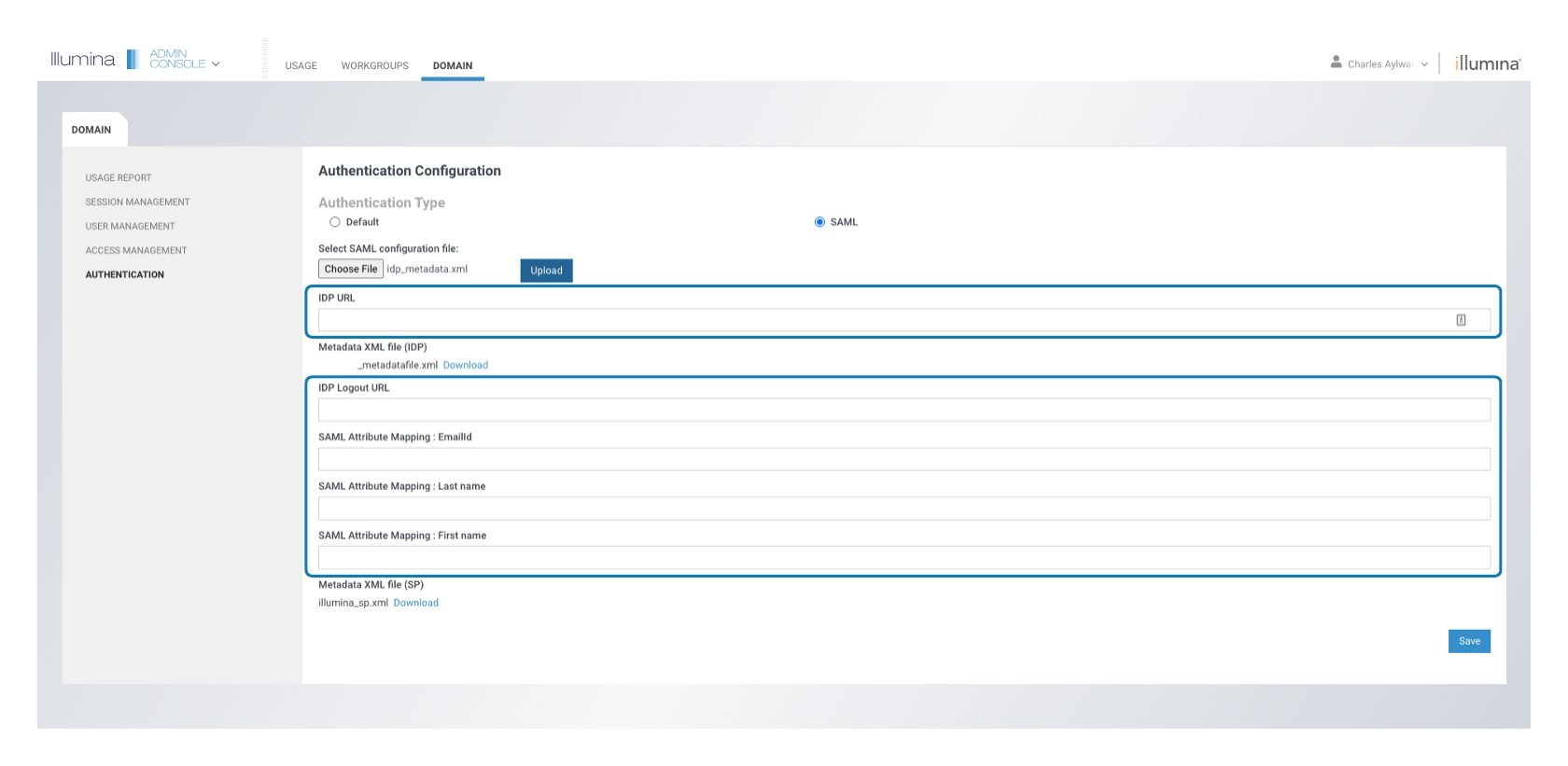

  5. Paste the Sign-in URL in the IdP URL field.

  6. Upload the IDP Metadata file to the "Select SAML Configuration File" file uploader.

  7. Add the SAML Attribute Mappings:

    • EmailId → email

    • Last name → last

    • First name → first

  8. Review and select Save.

  1. In Entra ID, copy the Login URL from the Configuration URLs.

  2. Return to the Illumina BioInsight Platform Admin Console.

  3. Paste the Login URL in the IdP URL field.

  4. Upload the Federation Metadata XML file to the "Select SAML Configuration File" file uploader.

  5. Add the SAML Attribute mappings:

    • EmailId → http://schemas.xmlsoap.org/ws/2005/05/identity/claims/userPrincipalName

    • Last name → http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname

    • First name → http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenName

  6. Review and select Save.

Allow 15 minutes for the Illumina Service Provider to update with the provided information. To confirm SAML configuration changes, attempt to log in using a qualified email (e.g., @company.com).

Passwords

Deprecated — PCN 2026-1866

Domain password policy settings have been deprecated. Minimum password complexity across the Illumina BioInsight Platform now meets or exceeds any previously configurable policy, so these settings are no longer available.

To manage custom password settings, configure Single Sign-On (SSO) for your domain.
